Check-in conveyor

Schmid Systemtechnik check-in conveyors and collection conveyors are designed and fabricated to fully comply with customers requirements in respect of design, functionality, life cycle, and space constrains.

Check-in conveyor (PDF)

Do you have any questions?

Configurations

Single or Double Check-in

Check-in with one, two or three stages, i.e. weighing, labeling and dispatch conveyor

Optional pull-out feature for easy and safe maintenance

Special check-in for bulky luggage
Two-stage check-in, drawn in

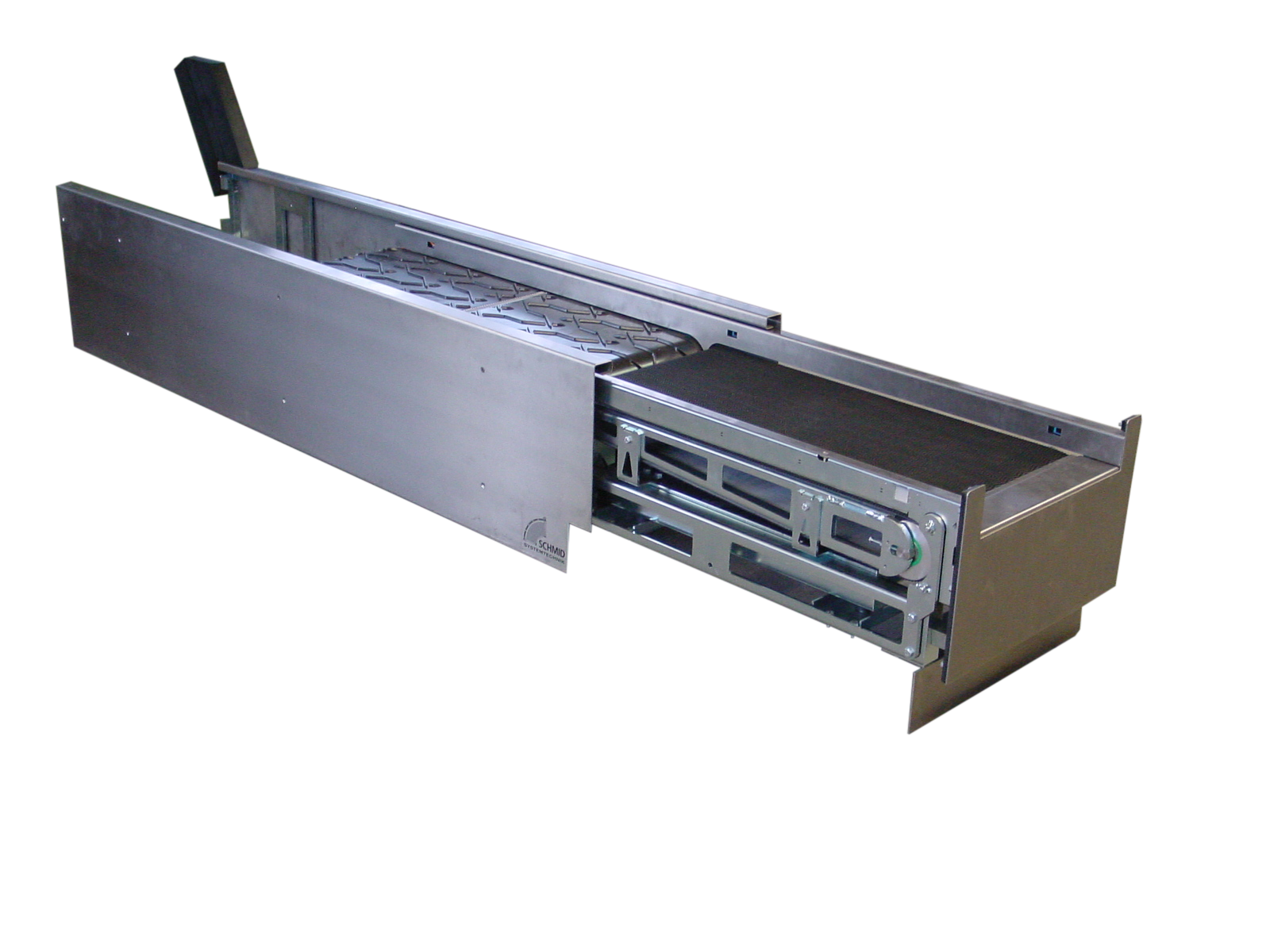

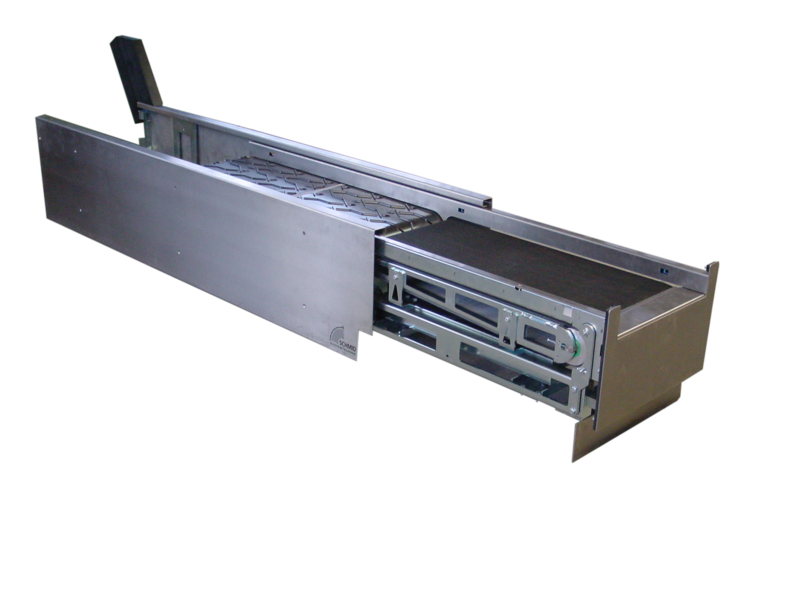

Two-stage check-in, pulled out

Reference airports

Cork, Dubai, Frankfurt, Sydney, Memmingen, Bern, Dublin, Abu Dhabi, Prague, Düsseldorf, Groningen, Dresden, Manchester, Sofia, Sylt

Airport Cork
Allgäu Airport
Dublin Airport
Flughafen Hahn

Options

  • One, two, or three stages, i.e. weighing, labeling and dispatch conveyor
  • Single or double check-in systems
  • Pull-out feature
  • Stainless Steel 1.4301
  • Reversible
  • Tilting device in stainless steel, polyamide or as roller
  • Customer-defined polished surface
  • Various types of weighing scales and displays
  • Choice of belt types and widths
  • Pre-wired for plug-and-play commissioning
  • Child-proof barrier

Technische Daten

Length customizable from 800 mm up to 1.800 mm
Conveyor height 395 mm
Drop-off height 395 mm or lower depending on whether embedded in floor or without pull-out feature
Installation mode fixed
Belt width customizable
Overall width customizable
Max. load static 150 kg/m, dynamic 50 kg/m
Conveying speed 0,5 m/s, customizable
Photoelectric sensors at each conveyor
Drives drum motors
Belts flame-retardant
Material stainless steel 1.4016
Noise level <65 dB(A)
