Belt curve

Thanks to a flexible modular set-up, Schmid Systemtechnik can supply belt curves with radii and belt widths in a wide range. The belt curves essentially consist of stable, torsion-free aluminum profiles. The combined drive and tensioning station guarantees quiet and low-noise operation.

Belt curve (PDF)

Do you have any questions?

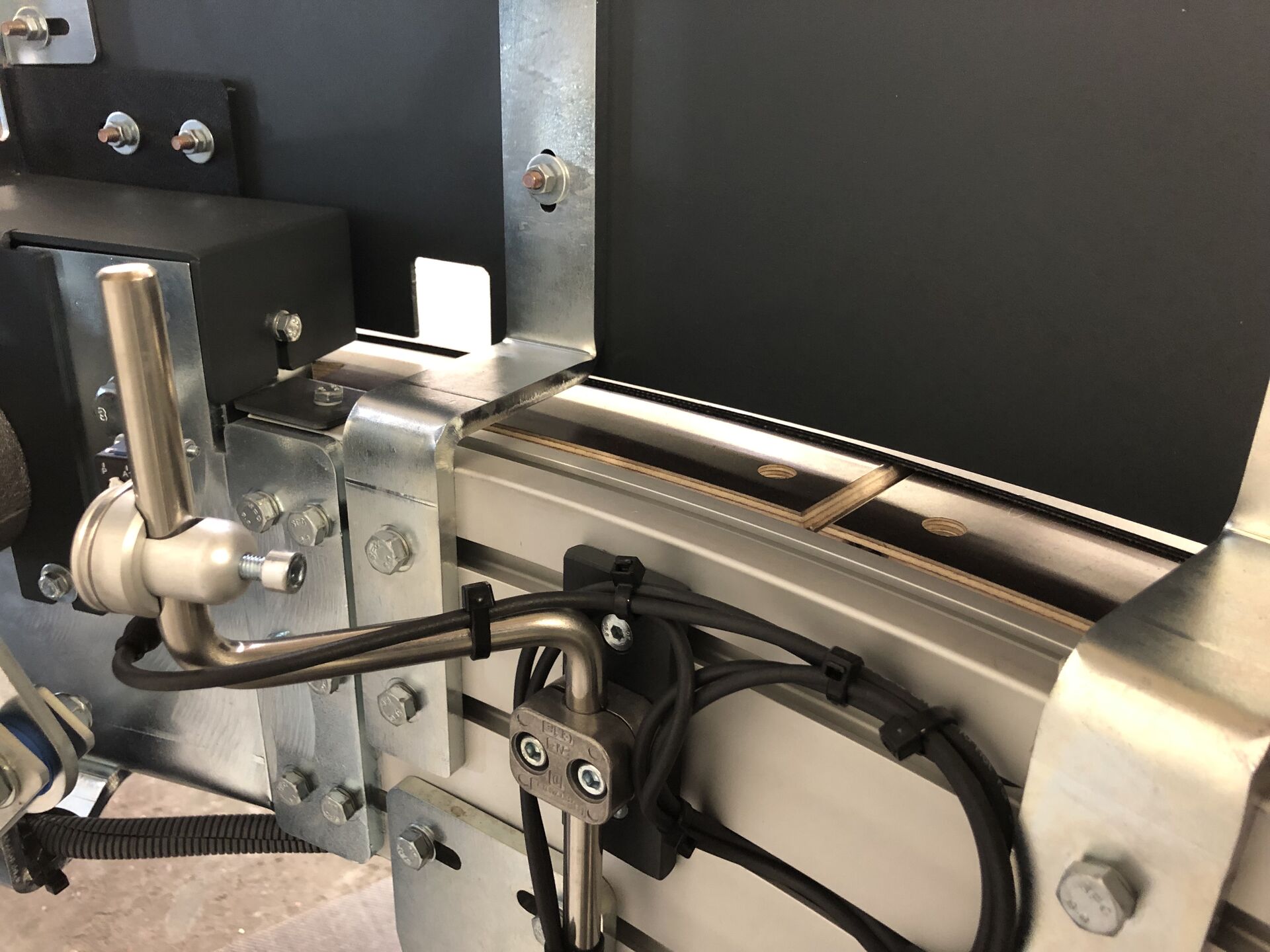

Quick belt change

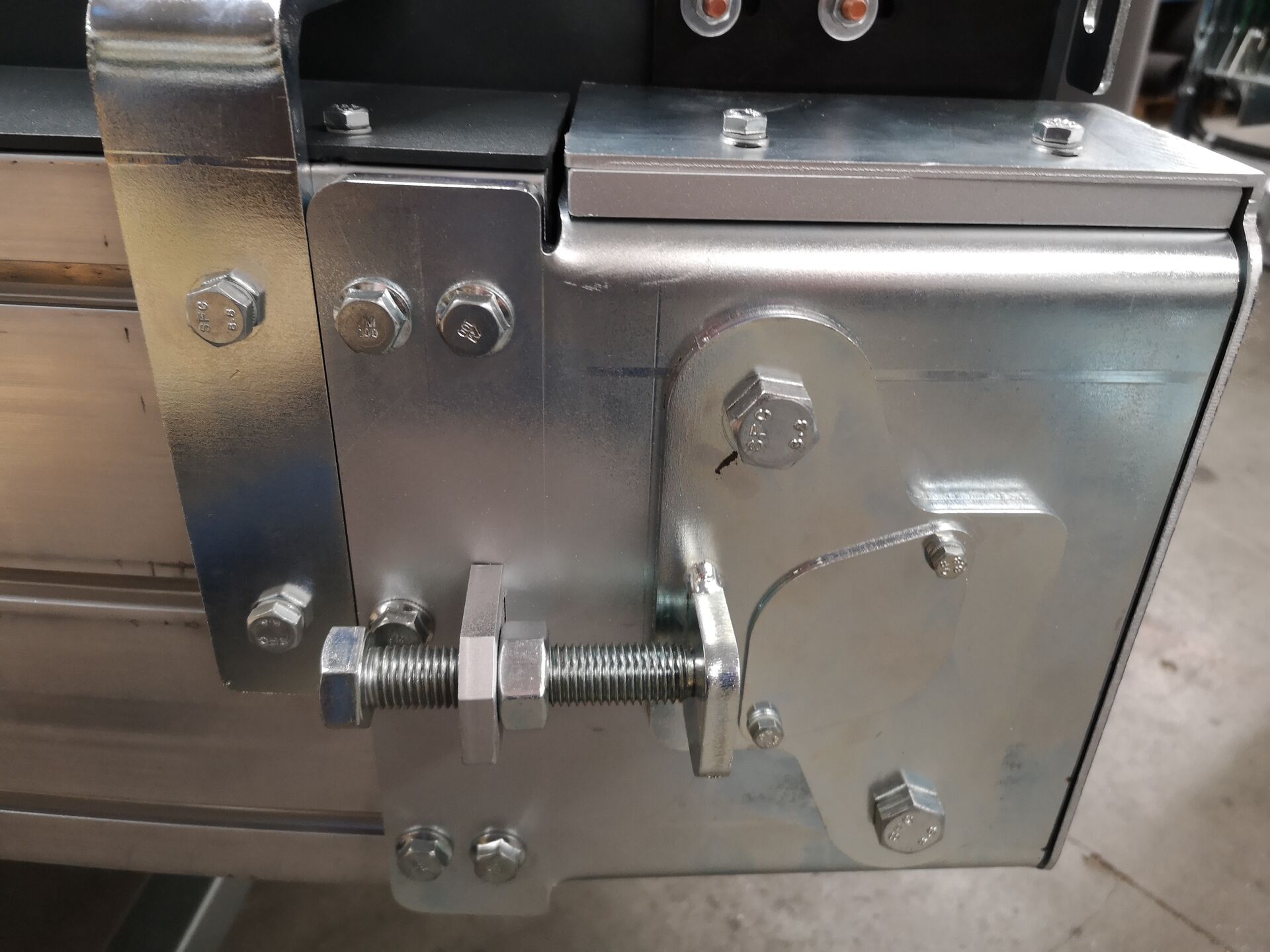

The modular design and our innovative quick-change system allow for quick and easy belt changes. Drives motors from well-known manufacturers are used as drives. The drive position, i.e. whether it is located inside or outside of the drive pulley, depends on the installation situation.

Conveyor belt

As standard, an antistatic belt is installed, either with a smooth or structured carrying side and two fabric layers. If needed, the belt curve can also be delivered with a food-safe or flame-retardant belt.

Options

Customized dimensions, e.g. angles, radii or widths

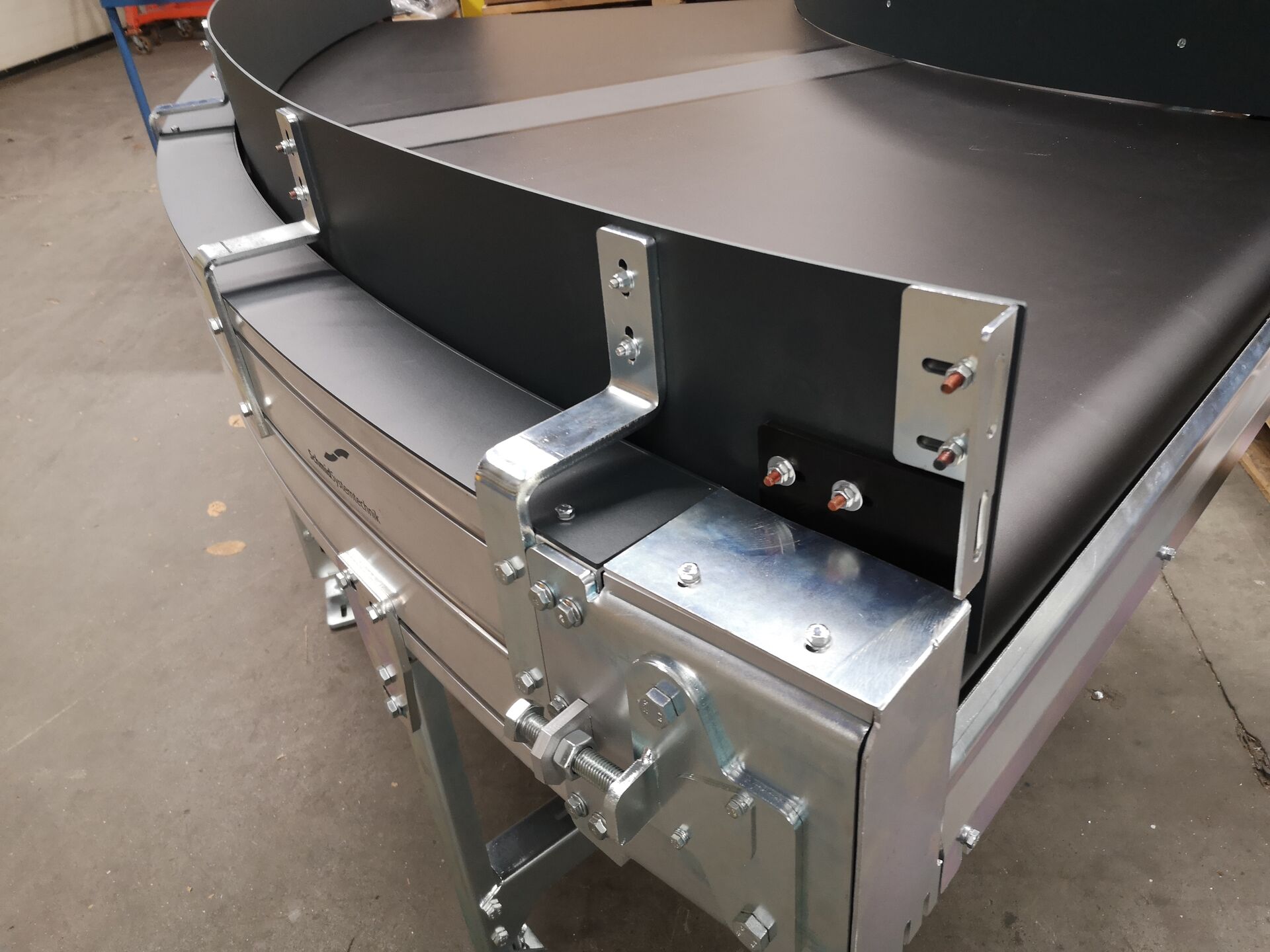

Side guards
Adjustable conveying speed
Reversing operation
Sensors, e.g. for flow monitoring
Without support or with ceiling suspension
Flame-retardant belts

Specifications

Conveying angle	30°, 45°, 60°, 90° and 180°
Nominal radius	1.900 mm and 2.600 mm
Nominal width	450 mm to 1.050 mm
Conveying height	min. 350 mm
Conveying speed	max. 1,2 m/s
Load:	50 kg/m
Accessories:	Supports, covers
